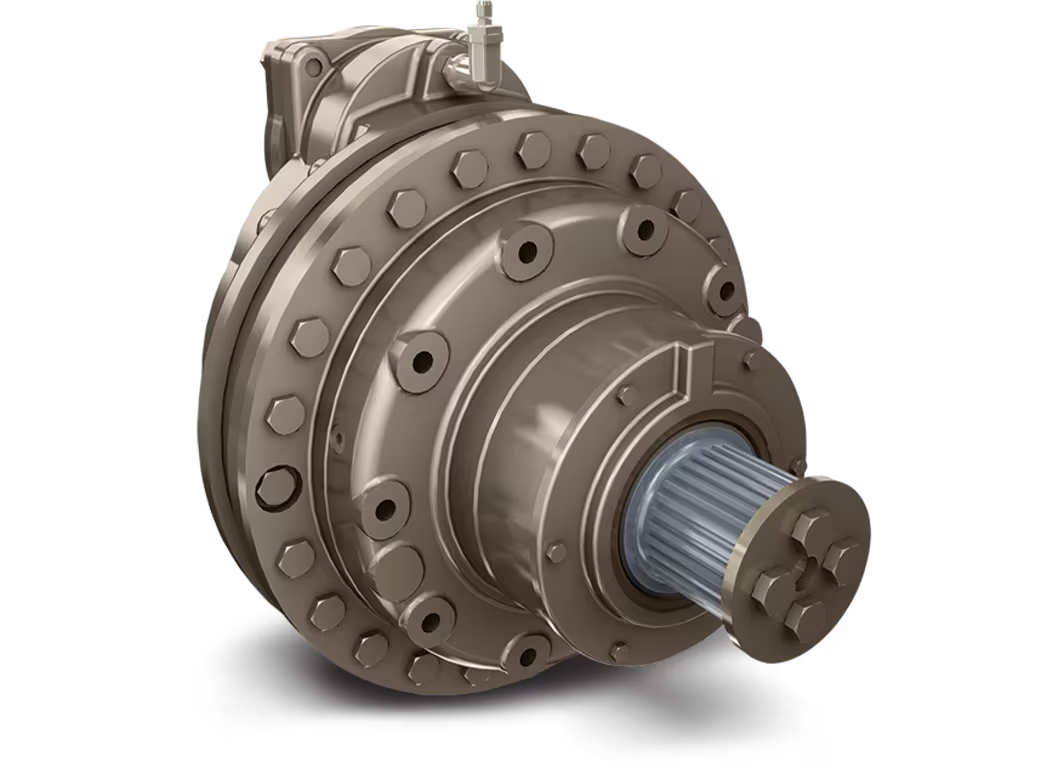

F25

Planetary Gear Drive
  • Drive type: speed reducer
  • Output torque: 33,895 Nm (25,000 lb-ft)
  • Max input speed: 2800 rpm

  • SPECIFICATIONS

    John Deere

    F25

    Planetary Gear Drive



    RATINGS



    Input speed (max)1 2800 rpm
    Output torque (intermittent) 33,895 Nm (25,000 lb-ft)
    Output torque (continuous) 18,710 Nm (13,800 lb-ft)



    GENERAL DATA

    Approximate dry weight3 215 - 263 kg (475 - 580 lb)
    Radial load (max)2 28,570 kg (63,000 lb)
    Drive type Speed reducer
    Hydraulic motor input SAE C or D
    Ratio range4 5.0:1 - 54.6:1
    Output Shaft

    Splined: 33T 8/16P

    Keyed: 4-in diameter
      1 Max input speed related to ratio and max output speed
    2 Max radial load placed at optimum load position
    3 Weight varies with configuration and ratio selected
    4 Actual ratio is dependent on the drive configuration
