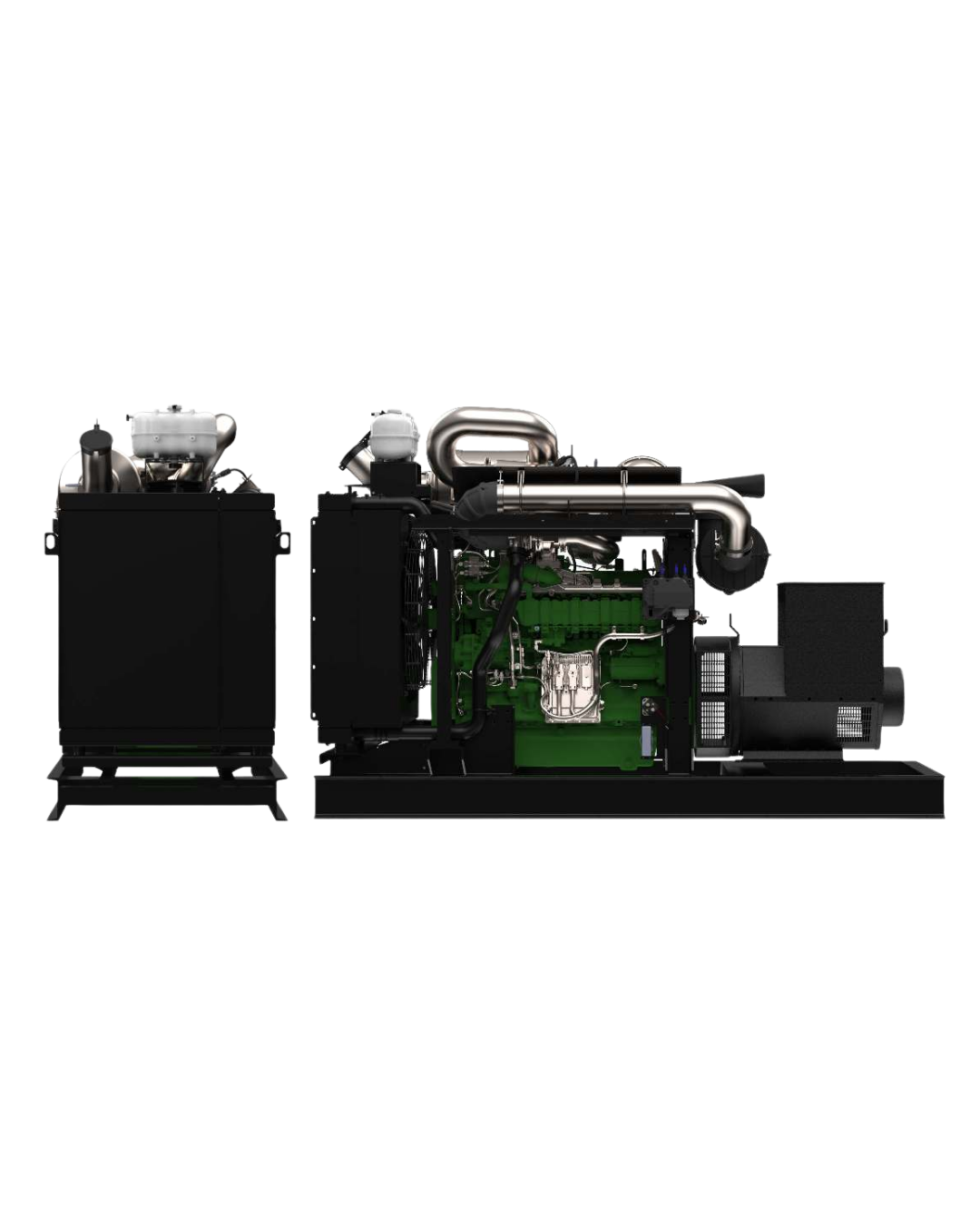

JDS145-T4

JDS145-T4

Engine Specifications
Specifications are subject to change without notice and are provided for reference only.
Manufacturer: John Deere
Model: 6068HFG05
Performance
  • Intermittent Output: 160 kWm (215 HP)
  • Continuous Output: 146 kWm (196 HP)
Engine Configuration
  • Cylinders: 6
  • Bore x Stroke: 106 mm × 127 mm (4.2 in × 5.0 in)
  • Displacement: 6.8 L (415 in³)
  • Compression Ratio: 17.2:1
Weight
  • Dry Engine Weight: 770 kg (1,698 lb)
Refer to the engine performance curve for additional technical information.

  • A.C. ALTERNATOR

    Manufacturer: Newage / Stamford
    Model: UCI274F

    Electrical Specifications

    • Control System: Self-Excited
    • Voltage Regulation: AS440 ±1%
    • Rated Power Factor: 0.8
    • Winding Leads: 12
    • Frequency: 60 Hz

    Thermal & Weight Data

    • Temperature Rise: 105°C / 40°C Ambient
    • Alternator Weight: 530 kg (1,169 lb)

    Refer to the alternator specification sheet for additional technical information.

  • GENERATOR SET SPECIFICATIONS

    Model: JDS145-T4

    Ratings

    • Prime Rating: 131 kWe
    • Standby Rating: 144 kWe

    Electrical Specifications

    • Voltage: 480V Standard*
    • Operating Speed: 1800 RPM
    • Phase: Three-Phase

    Weight

    • Estimated Genset Weight: 1,089 kg (2,400 lb)

    *Alternative voltages are available.

    Refer to Frontier Power Products for additional technical information.

  • STANDARD CONTROLS

    • Deep Sea Electronics DSE6110 MKIII digital start control panel with full engine parameter monitoring, DPF status indication, and integrated safety shutdown protection.
    • Control panel mounted on the service side of the generator set (space permitting) or rear-mounted above the alternator.
    • 12 VDC electric fuel transfer and priming pump.
    • Battery rack and cables included for the 12 VDC starting system (batteries not included).
