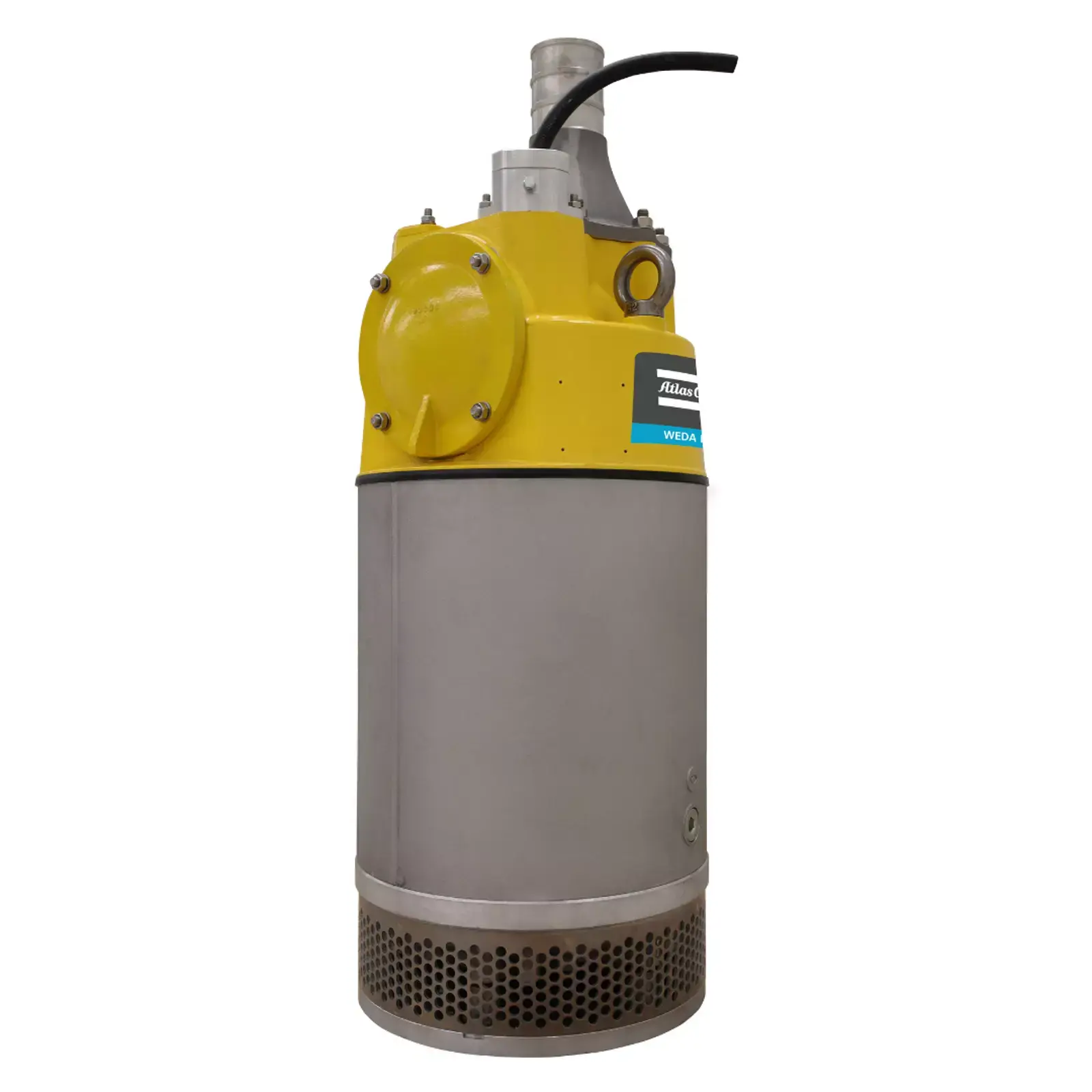

WEDA D95

WEDA D95

The WEDA D95 drainage pump features a max head of up to 340ft, max flow of 3000 USgpm, and can withstand solids of up to 0.63 in.


The WEDA drainage pumps handle either clean or sand-laden water, even with small solid particles, with the best performance and efficiency. These pumps are designed with robustness, sustained performance and ease-of-maintenance in mind. Suitable for general dewatering applications, ground water, raw water, construction sites and harsh conditions on site.

  • SPECS

    Product Code WEDA D95
    Installation  Portable drainage pump
    Hydraulic range

    N - Normal Head

    H - High head

    SH -Super High Head
    Insulation class H (+180°C/+356°F) IEC 85 (VFD-ready)
    Protection class  IP68
    Voltage variation  Max ± 5% of nominal voltage
    Voltage imbalance Max 2% - between phases
    Max start-stop Max 30 starts/hour
    Cable

    H07RN-F (20 m) or

    SOOW AWG (65 ft)
    Casted parts Corrosion resistant aluminum
    Impeller High chrome iron, 55±5 HRC
    Wear parts Rubber (NBR)
    Strainer Corrosion resistant aluminum
    Shaft Stainless steel
    O-rings  Rubber (NBR)
    Main bearing Double row ball bearing, pre- greased
    Mechanical seal Stainless-steel cartridge-type double mechanical seal SiC/SiC
    Thermal contacts 140°C / 284°F
    Options / accessories

    External starter box Zinc anodes

    Epoxy coating

    Pump raft

    NSSHÖU screened cable



    Product Code - WEDA D95 N - Normal Head H - High Head  SH - Super High Head
    Solids handling, strainer hole 0.63 in (16 mm) 0.47 in (12 mm) 0.47 in (12 mm)
    Liquid temperature Max 104°F Max 104°F Max 104°F
    Depth of immersion Max 65 ft Max 65 ft Max 65 ft
    Max Head 110 ft 340 ft 482 ft
    Max Flow 3000 USgpm 1100USgpm 700 USgpm
    Max liquid specific gravity 1.1 1.1 1.1
    pH of the pumped liquid pH 5–8 pH 5–8 pH 5–8



    Weight and dimensions - WEDA D95 N - Normal Head H - High Head  SH - Super High Head
    Discharge connection  8 in 4 in 4 in
    Height 52.4 in (1330 mm)   52.4 in (1330 mm)  53.2 in (1350 mm)
    Width 18.1 in (460 mm) 18.1 in (460 mm) 18.3 in (465 mm)
    Diameter  18.1 in (460 mm) 18.1 in (460 mm) 18.3 in (465 mm)
    Weight (excl. cable) 589 lb (265 kg) 589 lb (265 kg) 660 lb (300 kg)
